Product Features

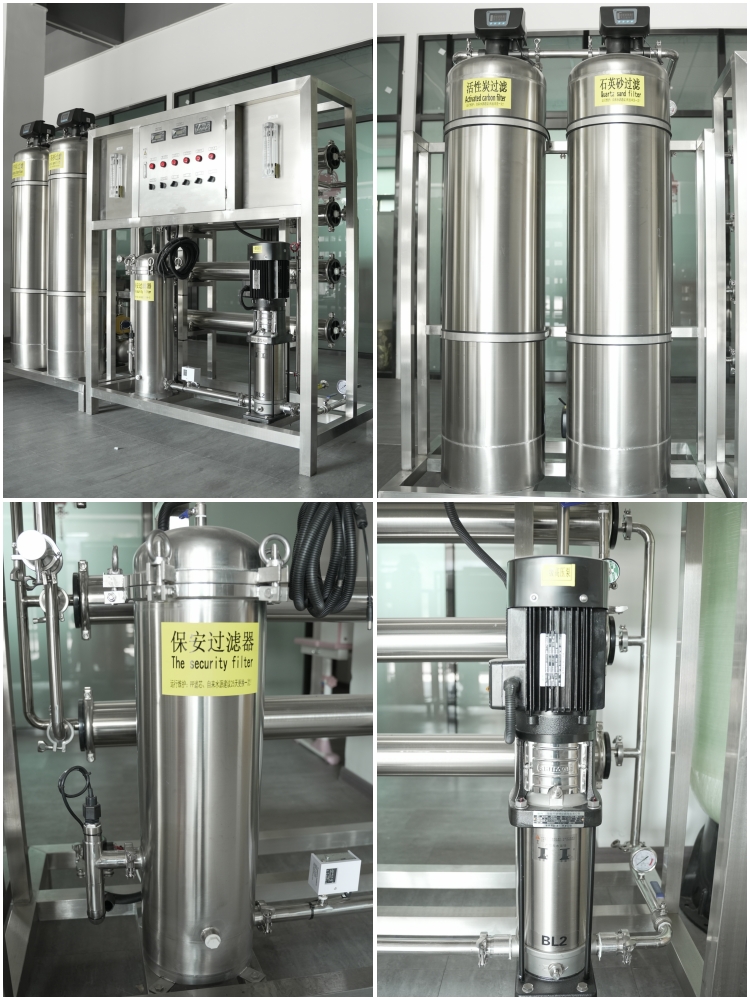

1. Full 304 stainless steel construction for tanks, frame, pipelines and key components, corrosion-resistant, sanitary and durable.
2. Two-vessel pretreatment system: quartz sand filter removes sediment, suspended solids and turbidity; activated carbon filter reduces residual chlorine, odor, color and organic matter to protect the RO membrane.
3. Single stage reverse osmosis design with stable desalination performance, suitable for industrial purified water production where very high water purity is not required.
4. Skid-mounted integrated structure, compact layout, easy transportation, installation and commissioning.

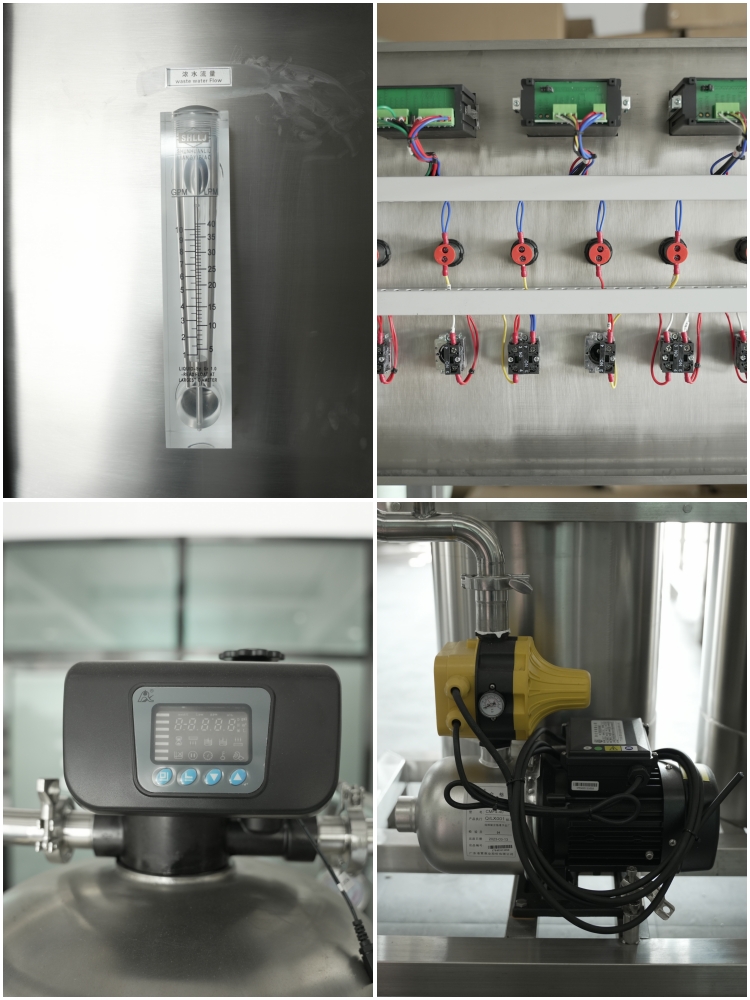

5. Automatic control system with push buttons, flow meters, pressure gauges and safety protection for stable operation.
6. Customizable service: adjust membrane quantity, pump configuration and material according to raw water quality and customer requirements.
Technical Parameters
| Water Production Capacity | 1000L/H (1T/H) @25℃ |
| Water Treatment Process | Raw Water → Quartz Sand Filter → Activated Carbon Filter → Security Filter → Single Stage RO → Purified Water |
| Pretreatment Vessels | 2 sets 304 stainless steel tanks (Quartz Sand Filter + Activated Carbon Filter) |
| Main Construction Material | 304 stainless steel (tanks, frame, pipelines) |
| RO Membrane | High rejection reverse osmosis membrane |
| Salt Rejection | Single stage RO ≥98% (depending on raw water quality) |
| Permeate Water Conductivity | Depends on raw water quality and customer requirements |
| Control System | Automatic control with push buttons, flow meters and pressure gauges |
| Operating Pressure | 1.0~1.6MPa (design based on raw water quality) |
| Power Supply | 380V/50Hz, 220V optional |
| Structure | Skid-mounted integrated frame |
Working Process
Raw water first passes through the quartz sand filter to reduce turbidity, sediment and suspended solids. Then it goes through the activated carbon filter to remove residual chlorine, odor, color and some organic matter. After the security filter, water is pressurized into the single stage reverse osmosis unit, where dissolved salts and impurities are rejected, and finally purified water is obtained.
Application Industries
Food and beverage processing, cosmetic manufacturing, fine chemical industry, laboratory water supply, electroplating rinsing, boiler make-up water, general industrial purified water.
FAQ
Q: What is a single stage RO water system used for?
A: A single stage reverse osmosis water system is used to produce industrial purified water by removing salts, turbidity, organic matter and other impurities. It is suitable for cosmetic, food, chemical and general industrial applications.
Q: Does this 1T/H RO system include pretreatment tanks?
A: Yes. This system includes 2 stainless steel pretreatment vessels: quartz sand filter and activated carbon filter.
Q: Can this single stage RO equipment be customized?
A: Yes. We can adjust the membrane configuration, pump capacity, pipeline material and control system according to your raw water quality and production requirements.
Q: What is the warranty period?
A: 1 year warranty for the whole unit. Consumables such as filter cartridges and RO membranes are excluded.
