Product Introduction

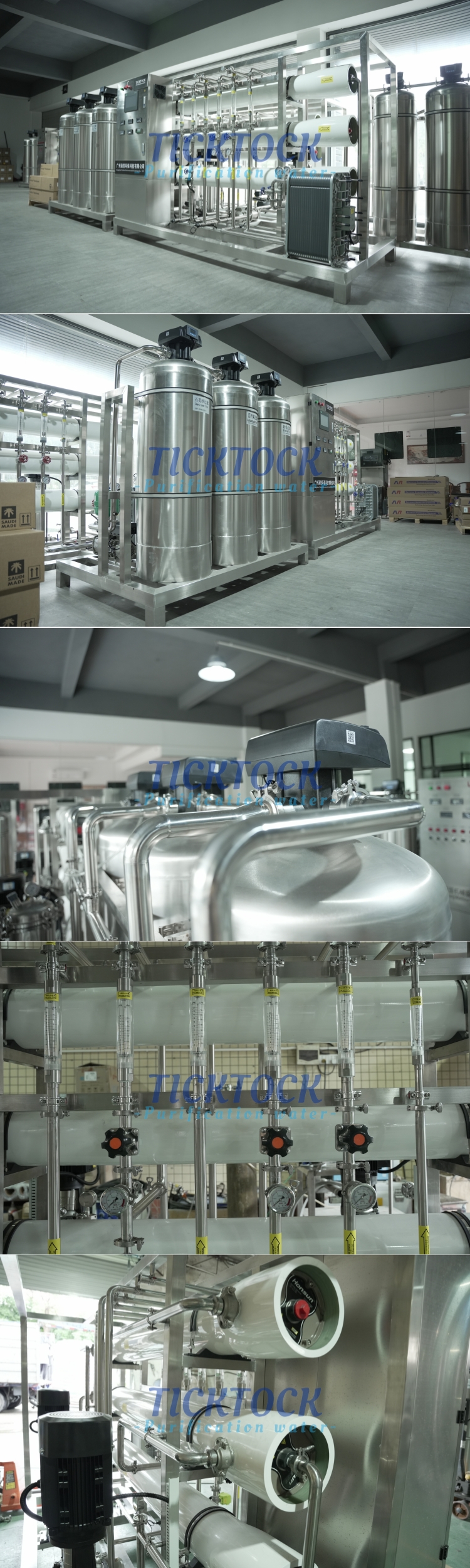

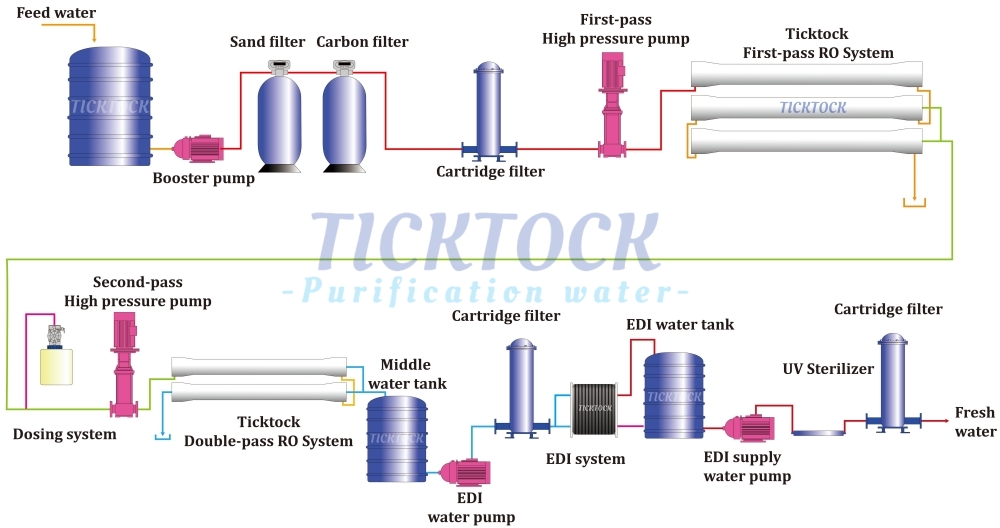

This 2T/H RO+EDI ultrapure water system is an integrated skid-mounted water treatment unit. The pretreatment section uses 3 stainless steel pressure vessels for quartz sand filtration, activated carbon filtration and softening, removing suspended solids, colloids, residual chlorine and hardness ions. After reverse osmosis desalination, the EDI module further removes dissolved ions to continuously obtain high-grade ultrapure water.
Main Technical Parameters
| Model | TT-2T-ROEDI-02 |
| Product Water Capacity | 2m³/h |
| Product Water Resistivity | 15 ~18.2 MΩ·cm |
| Pre-treatment | 3pcs 304 stainless steel tanks: Quartz sand filter + Activated carbon filter + Water softener |
| Main Material | 304 Stainless Steel frame, pipeline and tanks |
| Control System | PLC + Touch screen, fully automatic operation with multi safety interlock protection |
| Application Industry | Electronics, pharmacy, cosmetics, laboratory, fine chemical industry |
Product Features & Advantages
- Full 304 stainless steel construction, hygienic, anti-corrosion and easy cleaning
- Combined RO and EDI technology, stable ultrapure water quality, no chemical regeneration
- Compact skid-mounted structure, easy shipping, installation and commissioning
- Complete safety protection: low pressure, overpressure, water shortage protection and auto alarm
- Full set one-stop service: process design, manufacturing, on-site guidance and after-sales support
Application Fields
Electronic component manufacturing, pharmaceutical production, cosmetic production, laboratory ultra-pure water supply, fine chemical processing.
