Overview

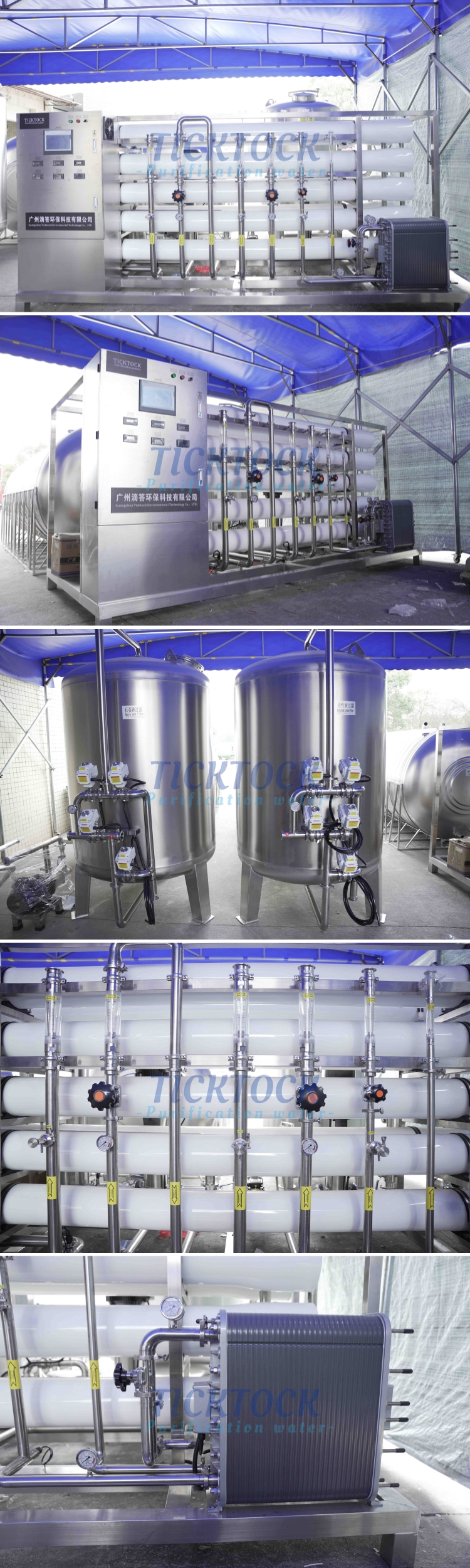

This 10 Ton/Hour Double Stage Reverse Osmosis Pure Water System is a high-efficiency industrial water treatment equipment. The two-stage RO design greatly improves desalination rate and water purity. It can produce stable pure water continuously for production lines. The whole frame is stainless steel 304, with PLC automatic control, online conductivity monitoring, automatic flushing and protection functions.
Working Principle

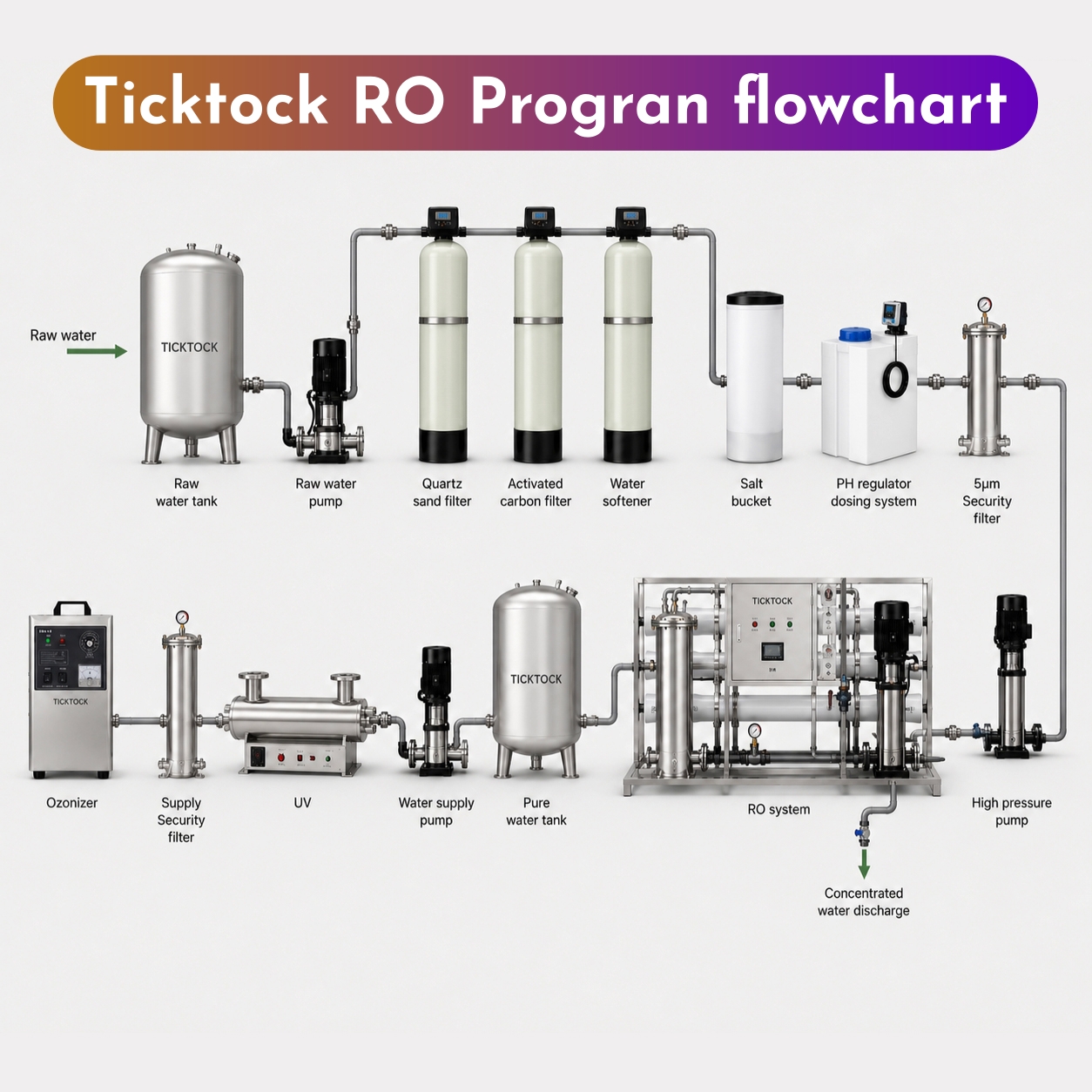

Raw water goes through pretreatment (quartz sand filter, activated carbon filter, softener, security filter) → first-stage RO high-pressure pump → first-stage RO membrane → second-stage RO high-pressure pump → second-stage RO membrane. The dissolved salts, heavy metal ions, colloids, bacteria and organic matter are intercepted by RO membranes, to get high-purity pure water. Concentrate water can be recycled or discharged as required.
Main Technical Parameters
- Rated capacity: 10 m³/h (10 ton per hour)
- Process: Double Stage Reverse Osmosis
- Desalination rate: ≥98% (single stage); ≥99.5% (double stage total)
- Raw water requirement: Tap water / underground well water, raw water TDS ≤1000ppm
- Outlet pure water TDS: ≤10ppm (depends on inlet water quality)
- Control mode: PLC automatic control + touch screen
- Frame material: SUS304 stainless steel
- Pipe material: UPVC / 316L optional
- Power supply: 380V / 50Hz / 3P (customizable)
- Operation mode: Continuous 24h running
- Protection: Low pressure protection, high pressure protection, automatic membrane flushing
Standard Configuration List
- Pretreatment Unit: Quartz sand filter tank, activated carbon filter tank, water softener
- 5μm security filter
- First-stage RO high pressure pump
- Second-stage RO high pressure pump
- RO membrane housings + high rejection RO membranes
- Conductivity online monitor (inlet & pure water outlet)
- Pressure gauges, flow meters, regulating valves
- PLC control cabinet + touch screen
- SUS304 assembly frame
- Automatic flushing system for RO membranes
Application Scenarios
✅ Electronic & semiconductor industry ✅ Pharmaceutical & cosmetic production ✅ Food & beverage processing ✅ Chemical wet process ✅ Battery material production ✅ Boiler feed water ✅ Laboratory high purity water supply
Features & Advantages
- Double stage RO design, excellent desalination performance, stable low TDS pure water
- Fully automatic running, unattended operation, automatic membrane flushing to extend membrane service life
- SUS304 integrated frame, compact layout, easy installation and maintenance
- Online real-time conductivity display, water quality visible
- Multiple safety interlock protection, prevent pump dry running and membrane damage
- Customizable pipe material, flow rate and auxiliary units according to customer raw water condition
Package & Delivery
- Packing: Plywood export case
- Delivery time: 15–25 working days
- Installation: We provide installation drawing, operation manual and online technical support
- Warranty: 1 year warranty for electric parts, lifetime technical support
Q1: What purity water can this 10m³/h double stage RO machine produce?
A: The outlet TDS is below 10ppm, subject to raw water TDS. If you need higher purity, we can add EDI module after double RO.
Q2: Can you customize the system according to my raw water?
A: Yes. We adjust pretreatment scheme based on your raw water test report.
Q3: How long is the RO membrane lifespan?
A: Normally 2–3 years under standard pretreatment and correct operation.
Q4: Is this machine fully automatic?
A: Yes, PLC + touch screen automatic running, auto flush RO membrane when shutdown.
Q5: What’s the voltage?
A: Standard 380V 50Hz 3 phase. We can make 415V/60Hz for overseas market.
