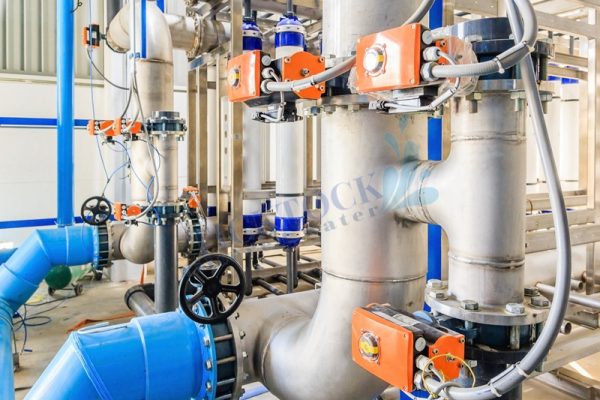

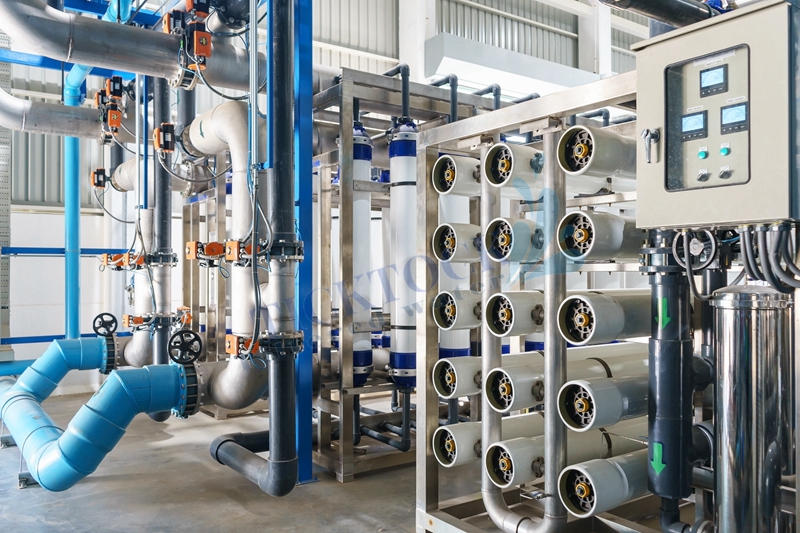

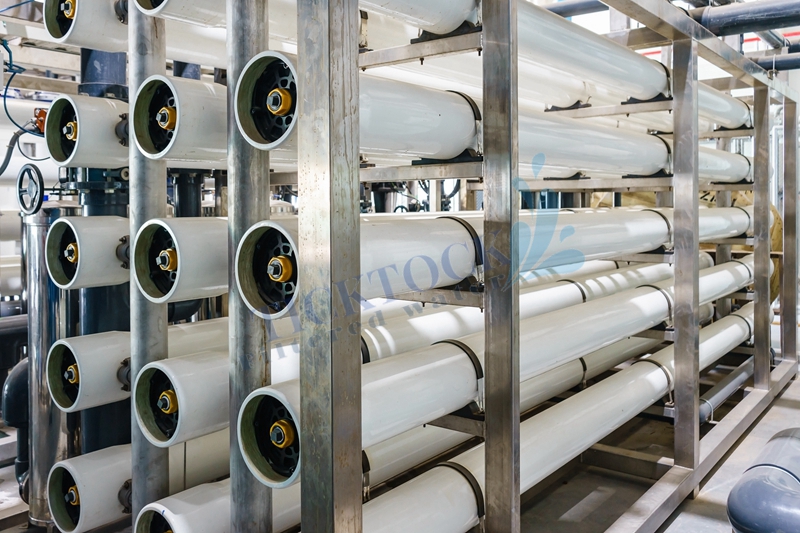

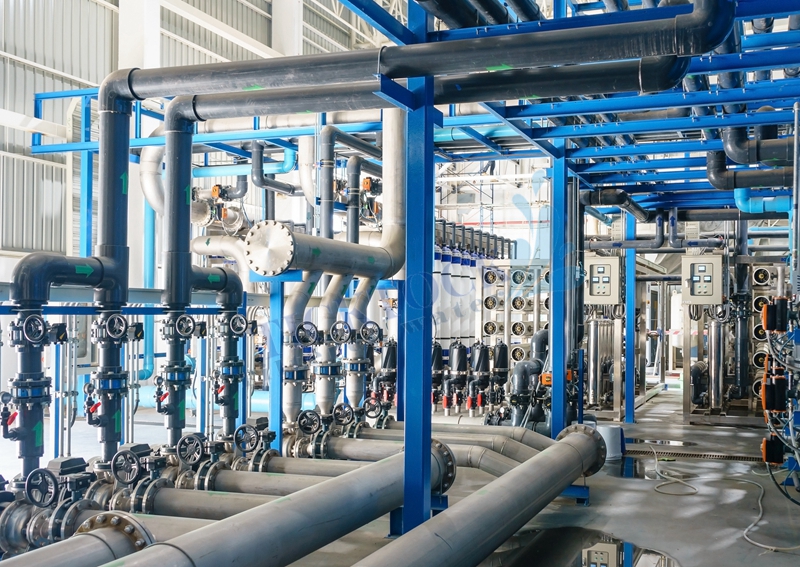

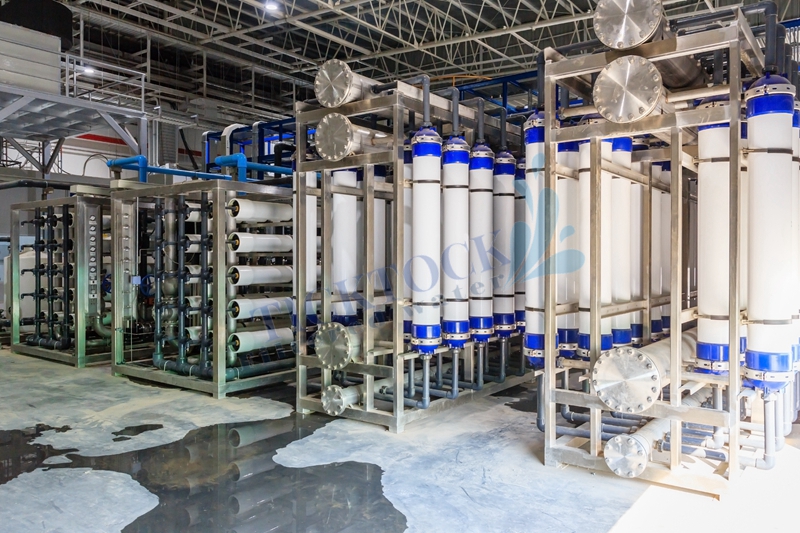

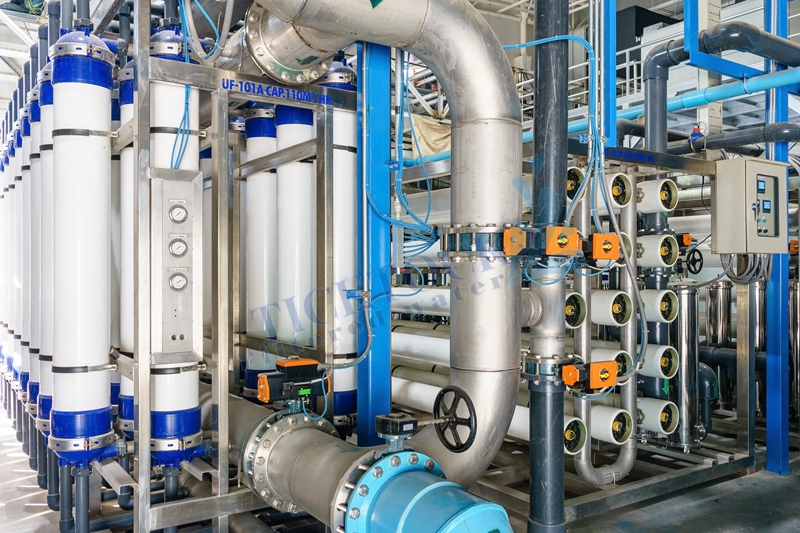

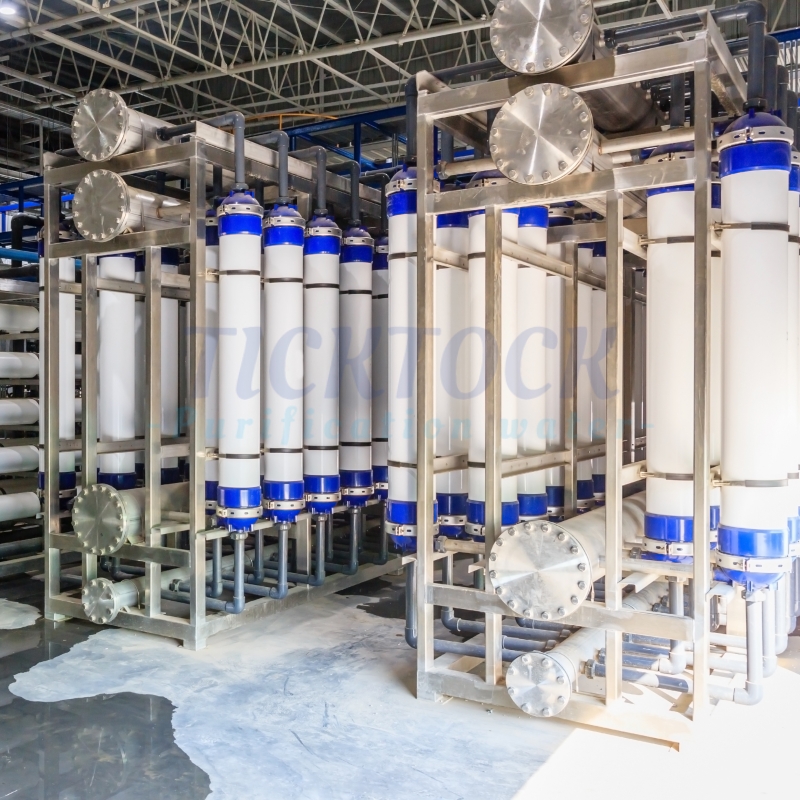

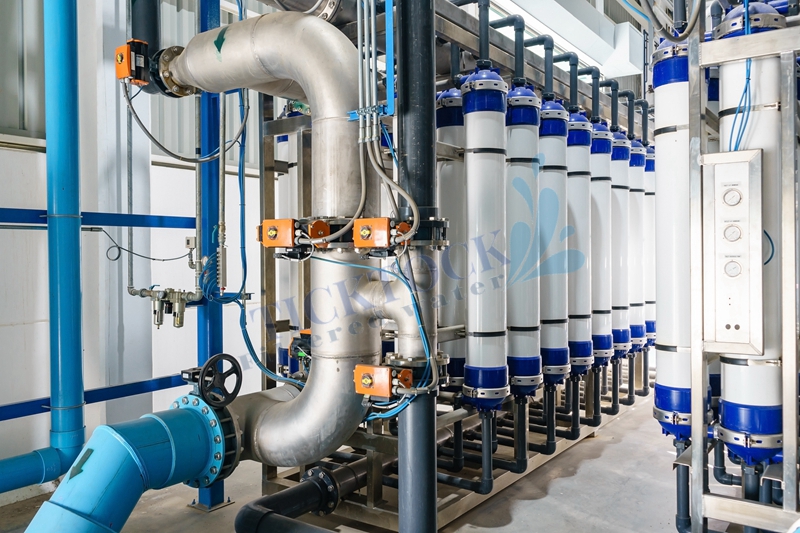

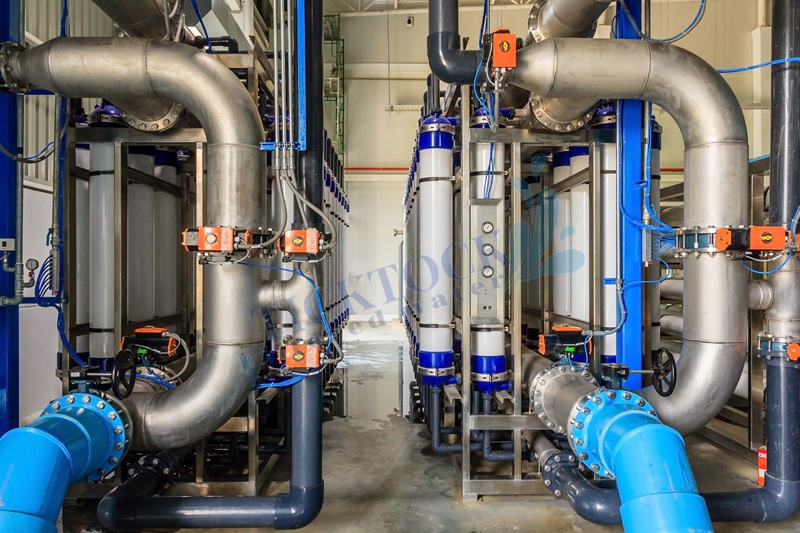

TICKTOCK Large UF+RO System

What is UF? Ultrafiltration (UF) is a membrane separation technology that can purify and separate solutions. The ultrafiltration membrane system is a solution separation device that uses ultrafiltration membrane wire as the filter medium and the pressure difference on both sides of the membrane as the driving force. The ultrafiltration membrane only allows solvents (such as water molecules), inorganic salts and small-molecule organic matter in the solution to pass through, while retaining macromolecular substances such as suspended solids, colloids, proteins and microorganisms in the solution, thereby achieving the purpose of purification or separation. Working principle of ultrafiltration equipment: Ultrafiltration is a membrane separation process that uses sieving as the separation principle and pressure as the driving force. The filtration precision is in the range of 0.005-0.01μm, which can effectively remove particles, colloids, bacteria, heat sources and high-molecular organic substances in water. It can be widely used in the separation, concentration and purification of substances. The ultrafiltration process has no phase transformation and operates at room temperature. It is particularly suitable for the separation of heat-sensitive substances and has good temperature resistance, acid and alkali resistance and oxidation resistance. It can be used continuously for a long time under the conditions of below 60℃ and pH of 2-11. use. Classification of ultrafiltration membranes: Ultrafiltration membranes are divided into plate and frame type (plate type), hollow fiber type, nano membrane surface ultrafiltration membrane, tubular type, roll type and other structures according to the structural type. Among them, hollow fiber ultrafiltration membrane is a relatively mature and advanced form of ultrafiltration technology. The outer diameter of the hollow fiber is 0.4-2.0mm, and the inner diameter is 0.3-1.4mm. The wall of the hollow fiber is covered with micropores. Raw water flows under pressure outside or inside the hollow fiber, forming external pressure and internal pressure hollow ultrafiltration membranes respectively. Ultrafiltration is a dynamic filtration process. The trapped substances can be removed with the concentrated liquid without clogging the membrane surface, and can operate continuously for a long time. Advantages of ultrafiltration equipment: A. The ultrafiltration membrane elements adopt the products of world-renowned membrane companies, which ensures that customers can get the current high-quality organic membrane elements, thereby ensuring the retention performance and membrane flux. B. The system has a high recovery rate and high-quality products, and can achieve efficient separation, purification and high-fold concentration of materials. C. There is no phase change during the treatment process, and there is no adverse effect on the components in the material, and the process of separation, purification and concentration is always in a normal temperature state, especially suitable for the treatment of heat-sensitive substances, completely avoiding the destruction of biologically active substances by high temperature Disadvantages, effectively retaining the biologically active substances and nutrients in the raw material system. D. The system has low energy consumption and short production cycle. Compared with traditional process equipment, the operation cost of equipment is low, which can effectively reduce production costs and improve economic benefits of enterprises. E. The system has advanced process design, high degree of integration, compact structure, small footprint, easy operation and maintenance, and low labor intensity for workers. F. The system is made of sanitary pipe valves, and the site is clean and sanitary, meeting the requirements of GMP or FDA production specifications. G. The control system can be individually designed according to the user’s specific requirements, combined with advanced control software, on-site centralized monitoring of important process operating parameters, avoiding manual misoperation, and ensuring long-term stable operation of the system in multiple directions. Application fields of Ticktock ultrafiltration equipment: ◆Mineral water: In the manufacture of mineral water, ultrafiltration technology is applied. In the engineering design, the pore size and membrane type of the membrane will be selected based on the water quality analysis report of the mineral water source, and the ultrafiltration design will be designed. ◆Food: Ultrafiltration technology is gradually adopted in the production of dairy products, juice, wine, condiments and other foods, such as the separation of protein and low molecular weight lactose in milk or whey from water, the clarification and sterilization of fruit juice, and the separation of colored wines The removal of proteins, polysaccharides and other colloidal impurities, and the removal of bacteria in soy sauce and vinegar show the advantages of economy, reliability and quality assurance compared with traditional methods. ◆Medicine: In the production of medicine and biochemical industry, it is often necessary to separate and purify heat-sensitive substances, and ultrafiltration technology shows its outstanding advantages in this regard. Using ultrafiltration to separate and concentrate biologically active substances (such as enzymes, viruses, nucleic acids, special proteins, etc.) is quite suitable for drugs extracted from animals and plants (such as alkaloids, hormones, etc.). The extracts often contain macromolecules or Solid matter can be separated by ultrafiltration in many cases, so that the product quality can be improved. ◆Pure water, ultrapure water: primary purification of industrial water, RO pretreatment for preparation of ultrapure water from pure water, terminal treatment of pure water and ultrapure water. ◆Environmental protection: Advanced treatment of industrial wastewater, urban reclaimed water reuse system, recovery of electrophoretic paint and oil products. ◆Fermentation: Separation and refinement of biochemical fermentation broth, concentration and refinement of enzymes, clarification and filtration of sugar and xylitol.
