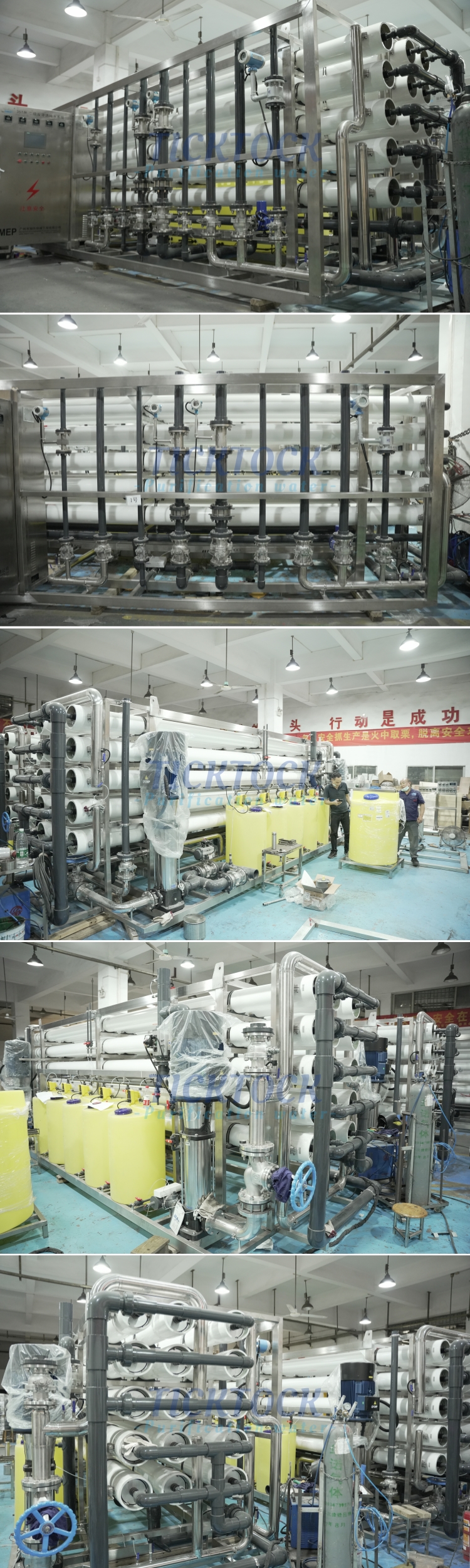

Our 35 ton per hour double stage RO water purification system is a mature industrial high-purity water solution. The first-stage RO removes most TDS, and the second-stage RO further lowers conductivity to obtain high-purity water. The integrated skid frame is made of SUS304 stainless steel, sturdy and anti-rust. It is equipped with high-efficiency vertical multi-stage high-pressure pumps, anti-corrosion UPVC or SS316L piping, FRP membrane shells, online pressure gauges, flow transmitters, conductivity meters, auto flushing and CIP cleaning system. PLC automatic control is optional, with high/low pressure protection and fault alarm. The system will automatically flush membranes before shutdown to extend membrane service life. We can customize the whole configuration according to your raw water quality report, including membrane quantity, dosing system and material selection.
Main Technical Parameters
| Item | Specification |
|---|---|
| Rated Water Output | 35 m³/h (at 25℃) |
| Process | Double Stage Reverse Osmosis |
| Recovery Rate | 1st stage:70~75%; 2nd stage:85~90% |
| Salt Rejection Rate | ≥98% |
| Outlet Conductivity | ≤10μS/cm (can reach ≤5μS/cm based on raw water) |
| RO Membrane | 8040 RO membrane (Dow / Toray / Vontron optional) |
| Membrane Housing | FRP, 1200psi |
| Frame | SUS304 stainless steel skid |
| Pipe Material | UPVC / SS316L optional |
| Control Mode | Semi-automatic / PLC automatic with touch screen |
| Supporting Units | Dosing system, CIP cleaning unit, pressure protection, auto flushing |
| Application | Food & beverage, pharmacy, electronics, chemical, boiler feed water |
Standard Components
- 1st & 2nd stage vertical high-pressure RO pumps
- FRP membrane housings and RO membranes
- Pressure gauges, flow meters, conductivity monitor
- Dosing system for antiscalant, reducing agent and pH adjustment
- CIP cleaning tank & cleaning pump
- SUS304 skid, valves and piping
- Control cabinet, pressure switches, auto flush solenoid valves

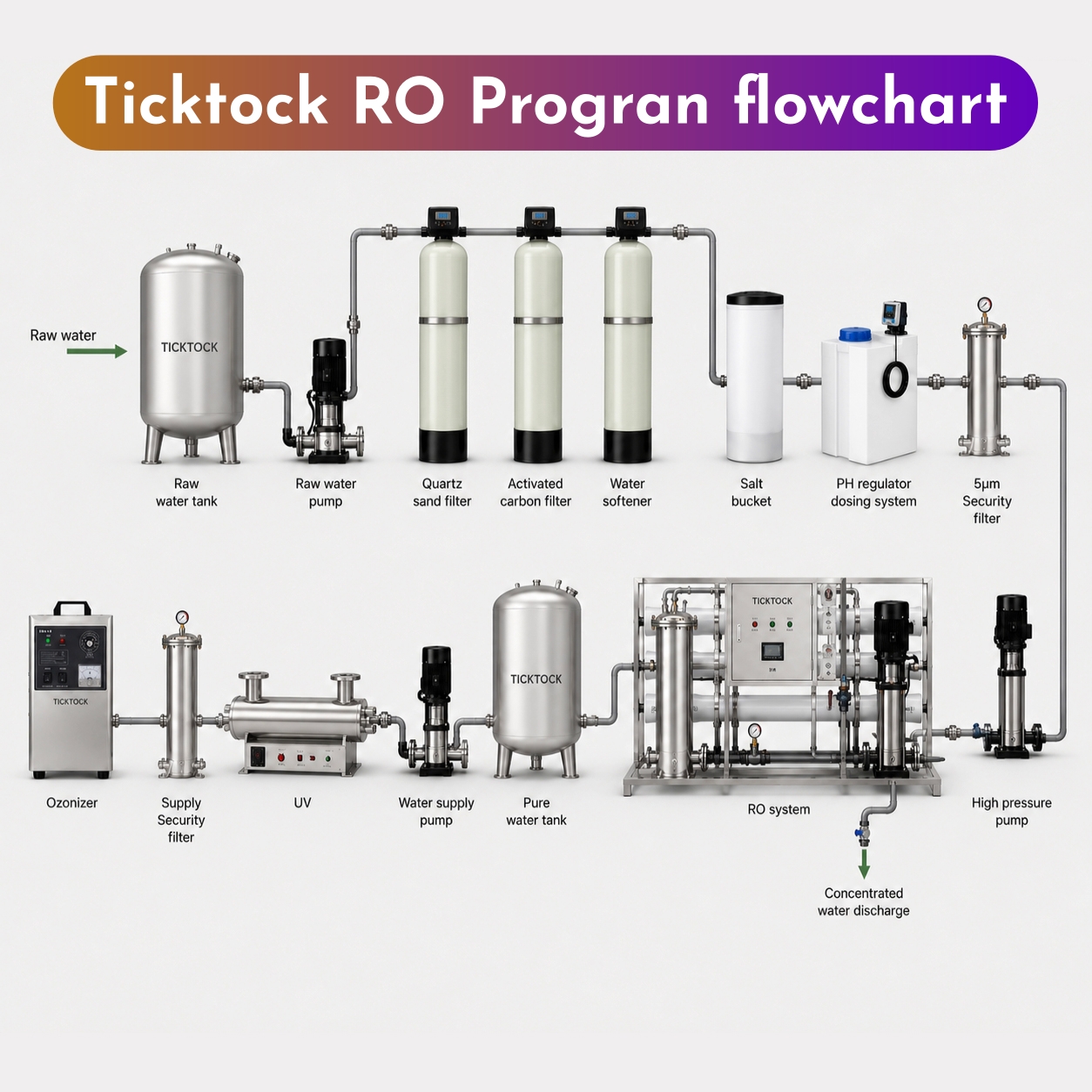

FAQ Q1: What is the outlet water conductivity? A: Normally ≤10μS/cm. The value depends on raw water TDS. It can reach ≤5μS/cm for low TDS raw water. Q2: Can you customize the system? A: Yes. We adjust membrane layout, pump power and dosing plan based on your raw water test report. Q3: How long is the RO membrane lifespan? A: 2–3 years under proper pretreatment and regular CIP cleaning. Q4: Does this set include pretreatment? A: This listing is for double stage RO main skid. Pretreatment (sand filter, carbon filter, softener) is supplied separately. Q5: Is automatic control available? A: Yes, we provide PLC touch screen version with auto flush and fault alarm.
