500L/H Double Stage Reverse Osmosis Equipment with UV Sterilization & Integrated Pure Water Tanks
Product Overview

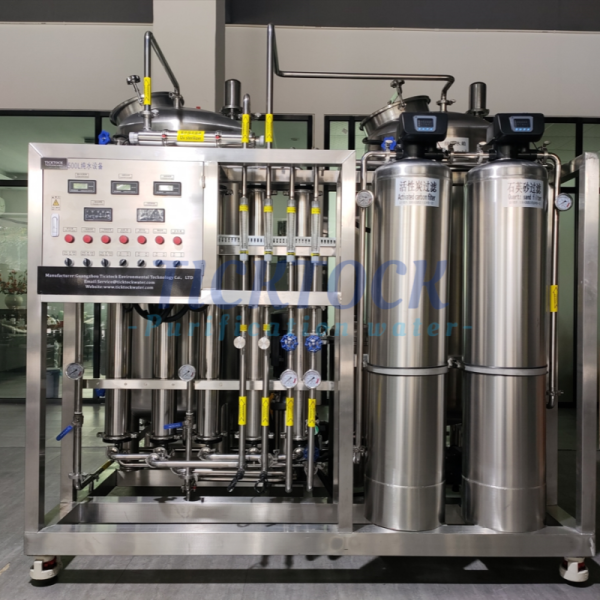

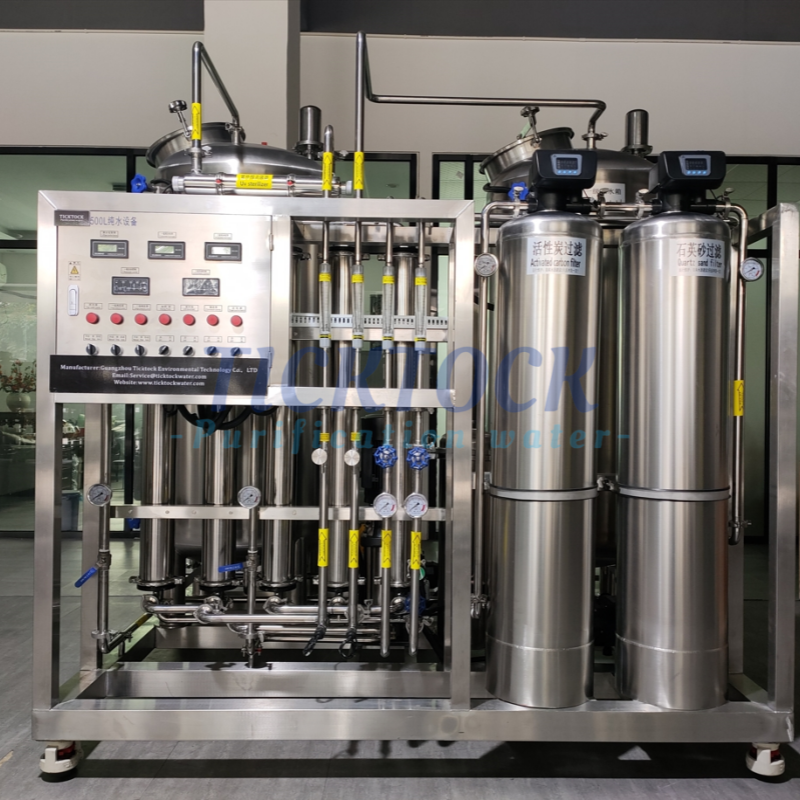

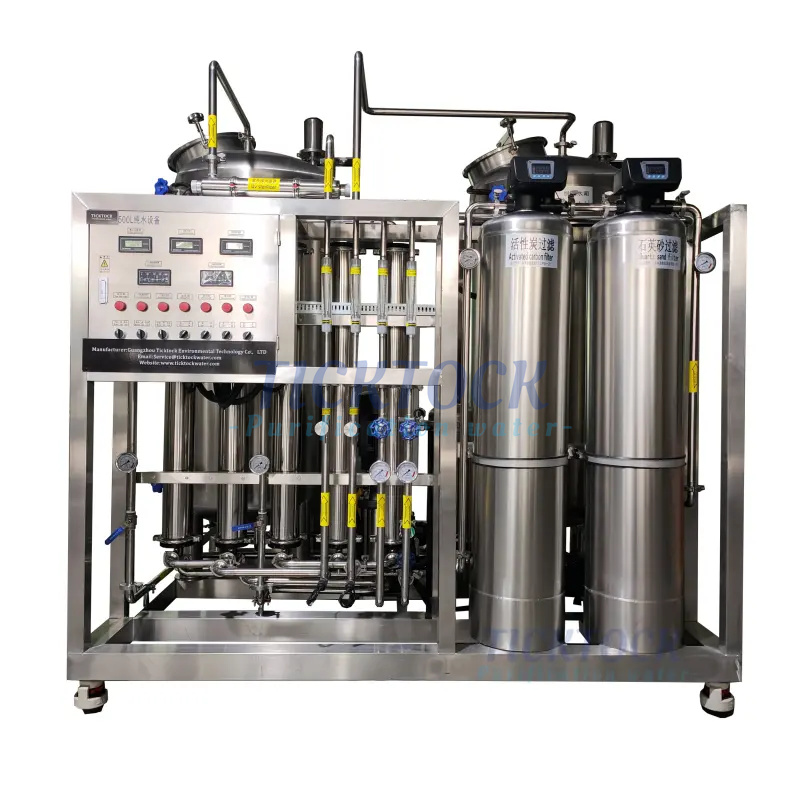

Introducing our advanced 500L/H Dual-Stage RO Water Purification System, designed for industrial and
commercial applications requiring high-purity water. This system integrates cutting-edge dual-stage reverse
osmosis technology, UV sterilization, and dual pure water tanks to ensure reliable, continuous, and safe water
production. Perfect for pharmaceuticals, laboratories, food processing, and electronics manufacturing .
Key Features
Dual-Stage RO Technology
Double Purification: Two-stage RO membranes effectively remove up to 99% of dissolved salts, heavy metals, organic matter,
and microorganisms, achieving a conductivity of ≤1 μS/cm for RO water .
Adaptability: Suitable for diverse water sources, including municipal tap water, groundwater, and surface water, even with TDS
≤300ppm .
Integrated UV Sterilization
Advanced UV Lamp: Japanese cold-cathode UV technology with dual wavelengths (185nm & 254nm) ensures thorough disinfection
and TOC reduction (<3ppb) .
Longevity: 50,000-hour lifespan, resistant to vibration and frequent on/off cycling .

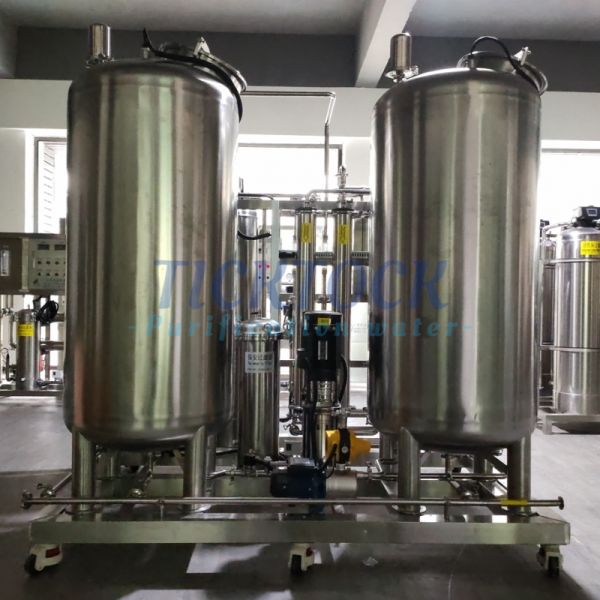

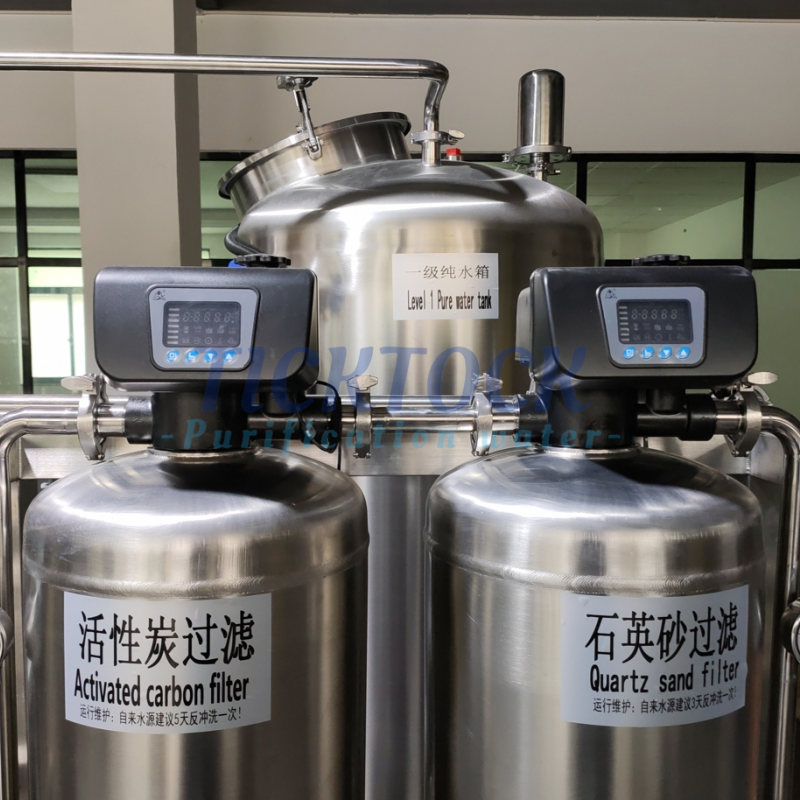

Dual Pure Water Tanks
Seamless Storage: Integrated raw water tank and pure water tank (stainless steel or food-grade PP) ensure consistent supply and
reduce external contamination risks .
Smart Management: Automatic water level control and real-time monitoring for uninterrupted operation .
User-Friendly Design
Compact & Durable: ABS engineering plastic enclosure, IP55-rated, corrosion-resistant, and suitable for humid environments .
Multilingual Interface: LCD touchscreen with dual-language support (English/Chinese) for easy operation .
Compliance & Safety
Certified Quality: Meets GB6682-2016 (China), ASTM, and CAP standards for laboratory-grade water .
Zero Leakage: Fully sealed, leak-proof structure with electrical and hydraulic separation for safety .
Technical Specifications
Capacity: 500L/H (132 GPH)
RO Membrane: High-rejection polyamide composite membranes (99% salt rejection) .
UV System: 50,000-hour lifespan, Φ4.0mm quartz sleeve .
Tanks: 304 stainless steel or PP material, customizable sizes .
Power Supply: 220V/380V, 50/60Hz .
Applications
Pharmaceuticals: Water for injection (WFI) preparation, equipment cleaning .
Electronics: Ultra-pure water for semiconductor production .
Food & Beverage: Bottling, ingredient mixing, and CIP processes .
Laboratories: HPLC, GC-MS, molecular biology, and cell culture .
Why Choose Us?
Quality Assurance: 12-month warranty with lifelong technical support .
Customization: Tailored solutions for flow rate, tank size, and automation level .
Global Standards: CE, ISO-certified manufacturing with PICC-insured product liability .
Order Now
Upgrade to a sustainable water purification system today! Contact us for a customized quote and OEM/ODM services.
