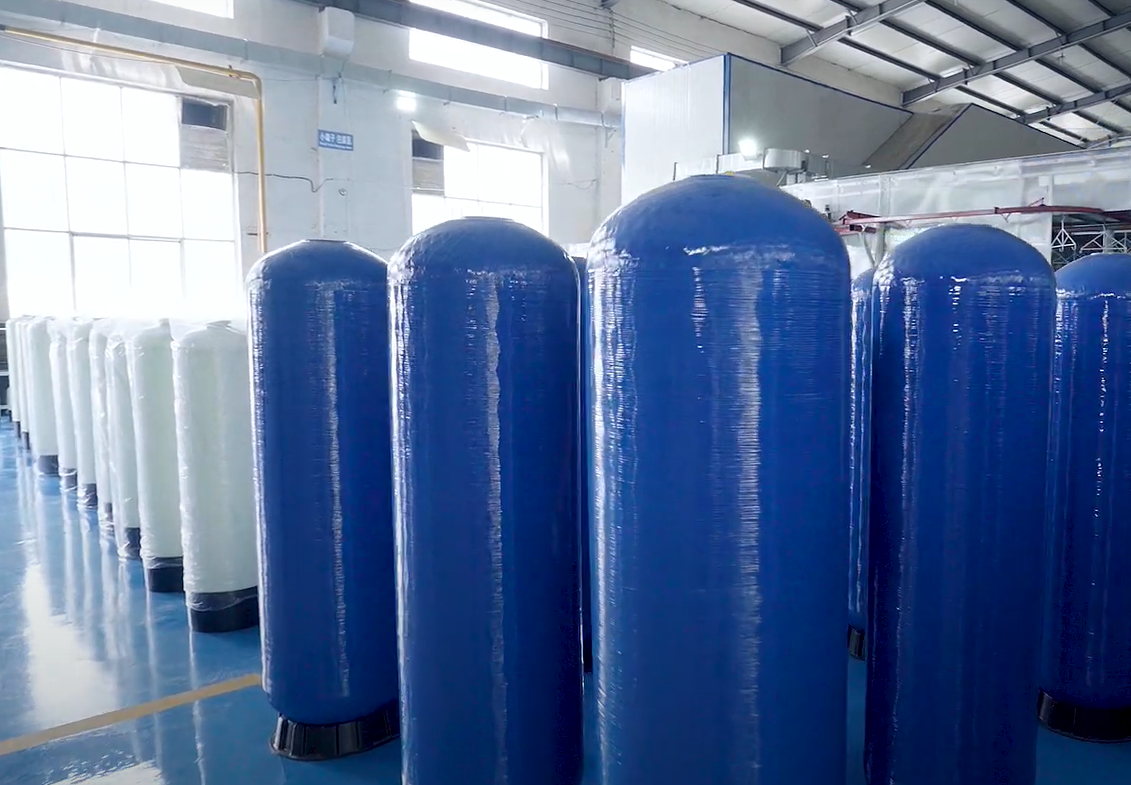

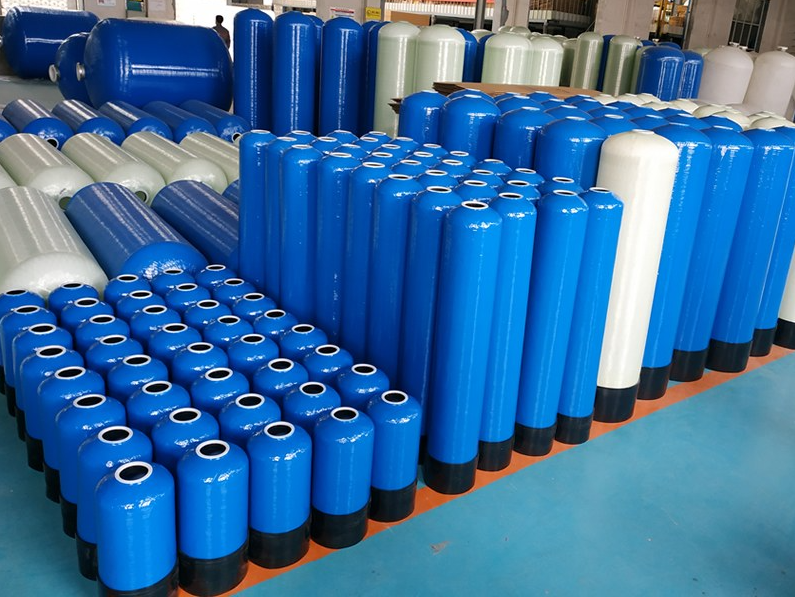

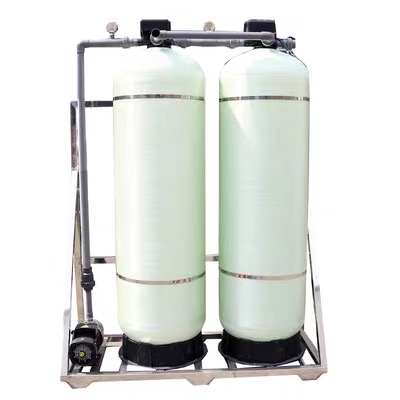

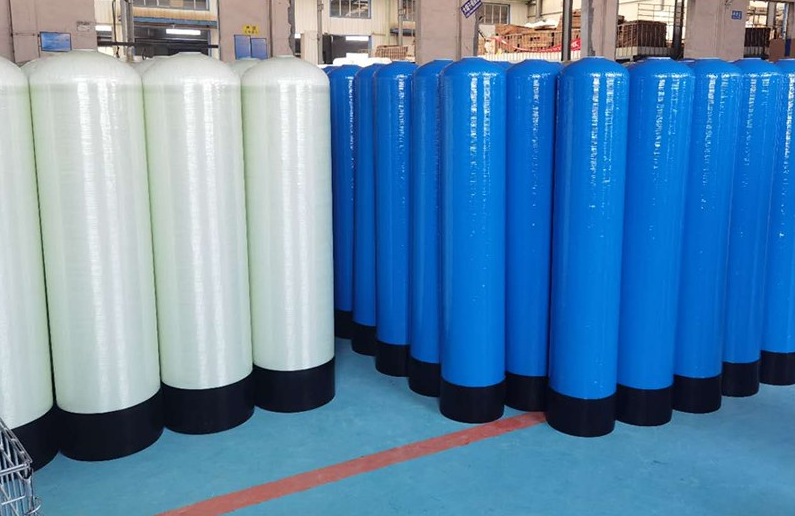

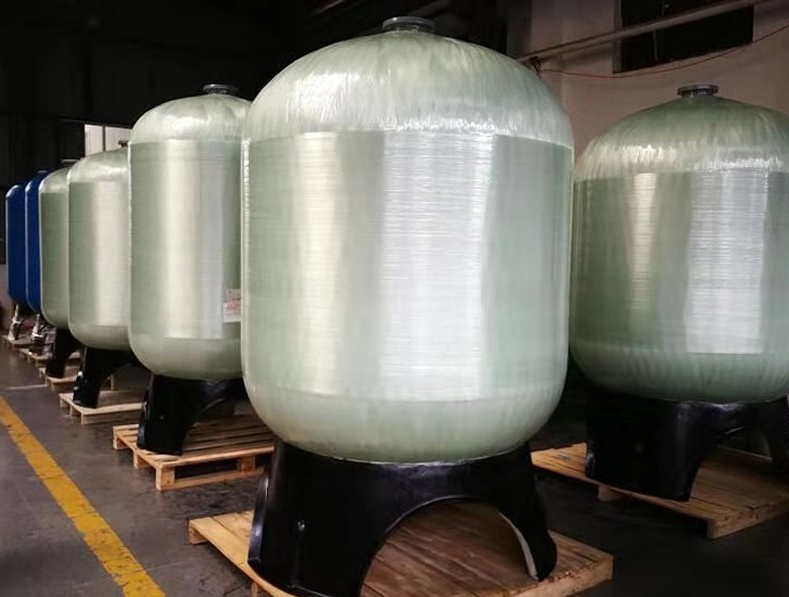

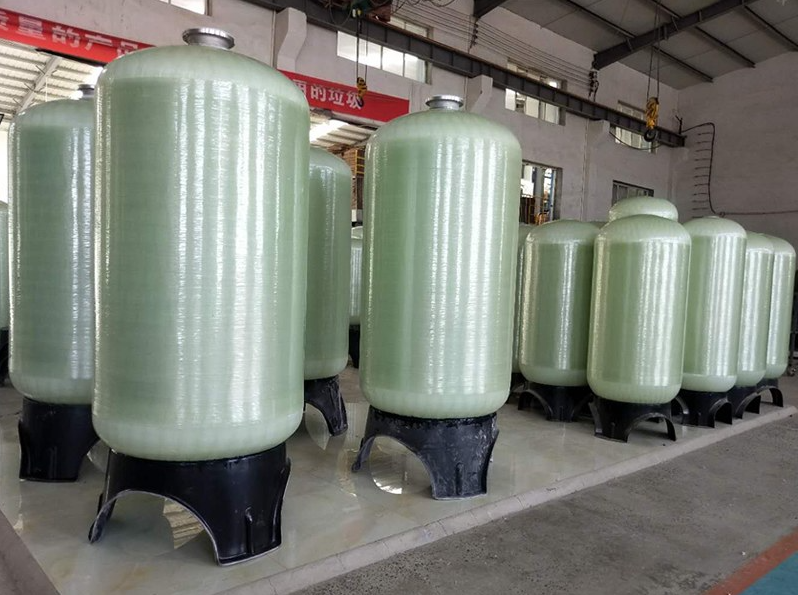

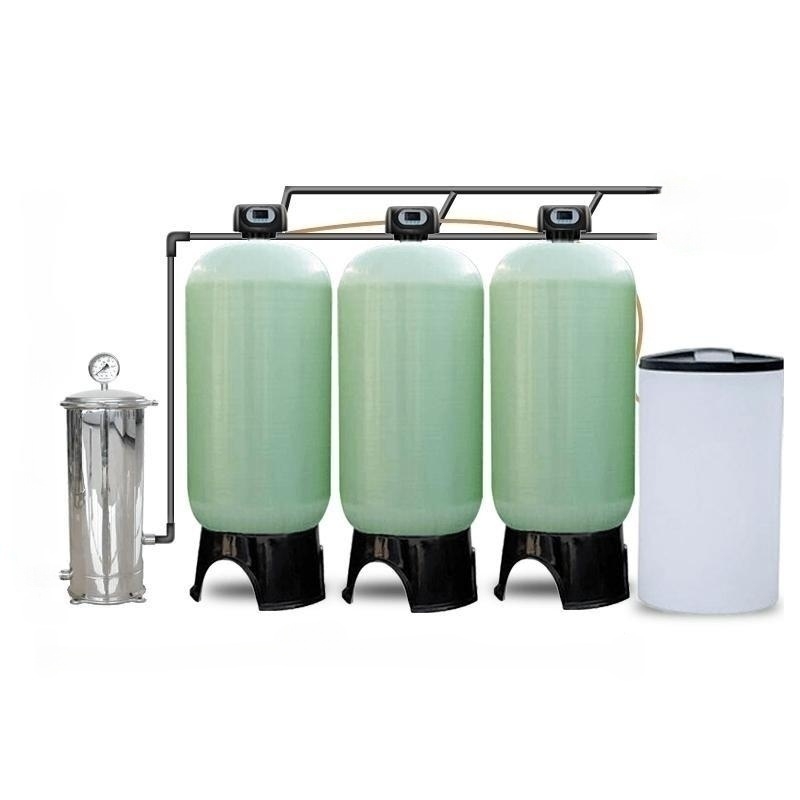

FRP tank vessel pressure industrial Fiberglass water tank for Water Filter System storage vertical water softener

Model	Volume	Open Type		Diameter	Total Height	Net Height	Flow rate	Port	Upper distributor	Bottom distributor	Center tube
Spec.	L	Top	Bottom	mm	mm	mm	m3/h
818	10	2.5″ NPSM	\	Ф200	445	435	0.1-0.3	Top Mount	601	602	6 Cent
835	25	2.5″ NPSM	\	Ф200	905	895	0.2-0.4	Top Mount	601	602	6 Cent
844	30	2.5″ NPSM	\	Ф200	1130	1120	0.2-0.5	Top Mount	601	602	6 Cent
1035	40	2.5″ NPSM	\	Ф250	905	895	0.4-0.8	Top Mount	601	602	6 Cent
1044		2.5″ NPSM	\	Ф250				Top Mount	601	602	6 Cent
1054	60	2.5″ NPSM	\	Ф250	1390	1380	0.5-1.2	Top Mount	601	602	6 Cent
1252	85	2.5″ NPSM	\	Ф300	1340	1330	1/2	Top Mount	601	602	6 Cent
1265	105	2.5″ NPSM	\	Ф300	1650	1640	1.5-2.5	Top Mount	601	602	6 Cent
1354	105	2.5″ NPSM	\	Ф325	1400	1390	1.8-2.5	Top Mount	601	602	6 Cent
1465	150	2.5″ NPSM	\	Ф350	1670	1660	2/3	Top Mount	601	602	6 Cent
1665	190	2.5″ NPSM	\	Ф400	1670	1660	2.5-4.5	Top Mount	601	602	6 Cent
1665B	190	4″ NPSM	\	Ф400	1670	1660	2.5-4.5	Top Mount	182	6260	1.5 Inch
1865	238	4″ NPSM	\	Ф450	1670	1660	3.5-4.8	Side Mount	182	6370	NO
2072	300	4″ NPSM	4″ NPSM	Ф500	1750	1570	3/5	Side Mount	5671	6370T	NO
2472	440	4″ NPSM	4″ NPSM	Ф600	1850	1670	4/6	Side Mount	5671	6450T	NO
3072	680	4″ NPSM	4″ NPSM	Ф750	1850	1660	6/10	Side Mount	5671	6600T	NO
3672	860	4″ NPSM	4″ NPSM	Ф900	1850	1635	10/15	Side Mount	5671	6700T	NO
4072	1050	6″FLG	6″FLG	Ф1000	1850	1535	16-24	Side Mount	173	Mar-74	NO
4094	1400	6″FLG	6″FLG	Ф1000	2400	2130	22-28	Side Mount	173	Mar-74	NO
4896	1800	6″FLG	6″FLG	Ф1200	2400	2150	30-40	Side Mount	173	Mar-75	NO
6096	2700	6″FLG	6″FLG	Ф1500	2400	2100	40-60	Side Mount	175	Mar-76	NO
7296	4800	6″FLG	6″FLG	Ф1800	2400	2035	50-80	Side Mount	175	Mar-78	NO
8096	6600	6″FLG	6″FLG	Ф2000	2400	2070	70-100	Side Mount	175	Mar-78	NO
